USEOT Crane

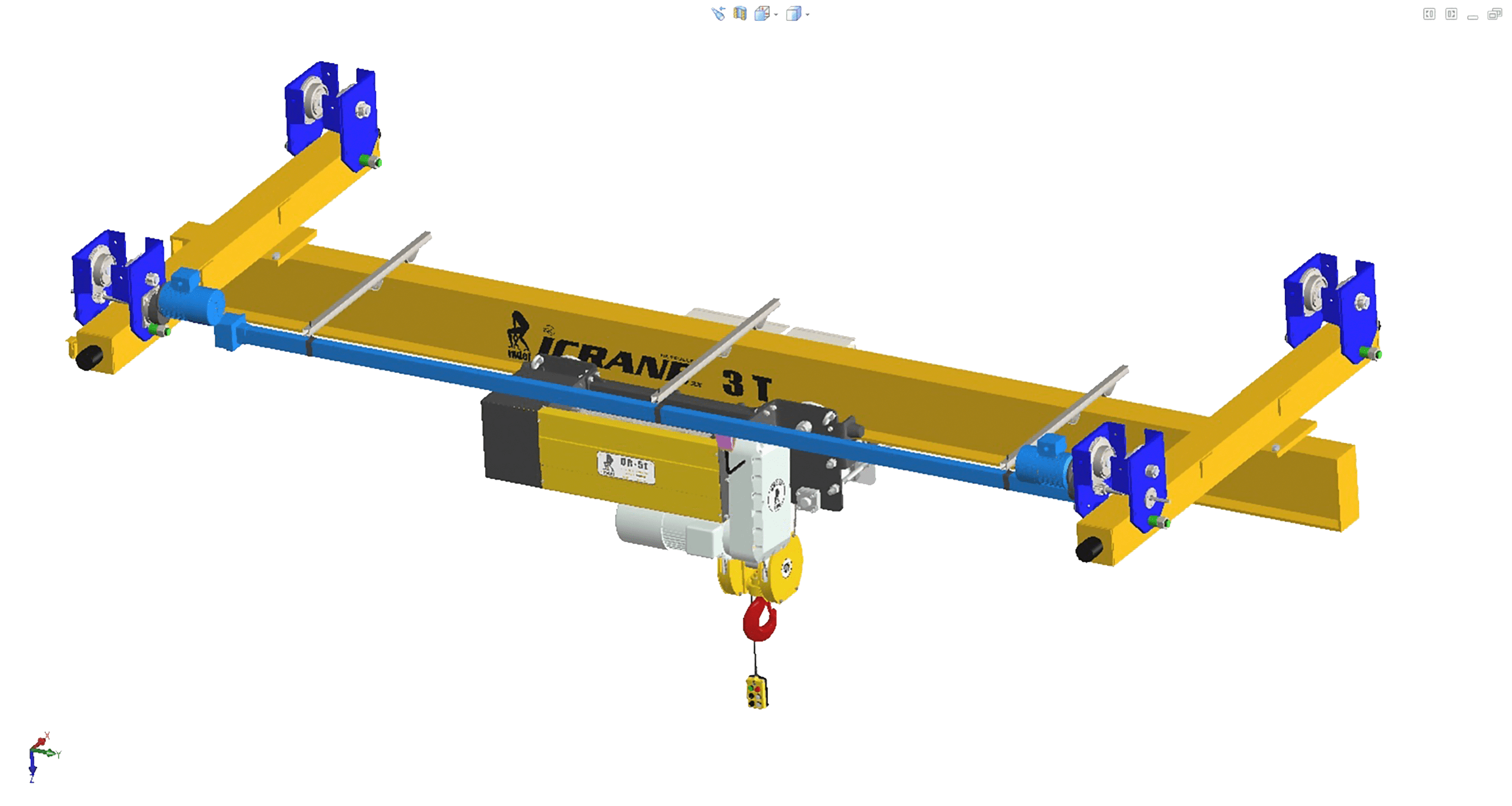

The Underslung EOT crane is an upside-down variant of the EOT crane that comes with a single girder or cross beam. The gantry beam is hung against the shed structure and the LT end carriage is suspended from it. The girder is connected below the end carriage.

This product is recommended for standard work procedures with nominal load value, mostly M5/Fem 2M duty.

Our product ranges up to 10T with a span up to 25 meters. The optimised modular design is compliant with International FEM, ISO and IS standards with a circular variant also available.

A complete USEOT crane consists of –

  • 1 Suspended Girder
  • 2 End Carriage Assemblies
  • 1 Hoist with Trolley
  • 1 Electrical Panel with Field Cables

USPs

  • Optimised structural weight of the crane.
  • The inverted U shape design of the end carriage provides maximum height of lift.
  • Equipped with a short headroom hoist.
  • There is an anti-fall arrangement for the crane.
  • Electromechanical overload device adds to the safety.
  • The USEOT offers flexibility. It can be designed over new or existing structure without the structures undergoing heavy changes.

Features

  • SWL Range varies from 1T to 10T with a lift height of 24 meters.
  • Available with differing speeds for travel and hoist motion.
  • The welded box girder is designed for maximum rigidity and optimal deadweight.
  • Effortlessly moving pendant on the independent C-Rail track.
  • Equipped with a cross bar limit switch to control travel motion.

Benefits

  • Prevents misalignment and axial load.
  • Low wheel load with optimised structure.
  • Easy management of the cross-travel movements using special flat cables which have been designed for the application.
  • Overhang is possible for both sides of the girder to increase the work area.
  • Improved hook approaches at both ends.
  • Best-in-class headroom as opposed to other crane variants.

SWL UP TO 12.5 T
SPAN UP TO 18 Meters
LONG TRAVEL (LT) SPEED UP TO 40 M/MIN
CROSS TRAVEL (CT) SPEED UP TO 20 M/MIN
HOISTING SPEED UP TO 8 M/MIN
HOISTING/ TRAVEL SPEED DUAL SPEED OFFERED AS STANDARD VFD (Optional)

Warning: Illegal string offset 'url' in /home/customer/www/indef.com/public_html/wp-content/themes/hercules/single-product.php on line 190

Warning: Illegal string offset 'title' in /home/customer/www/indef.com/public_html/wp-content/themes/hercules/single-product.php on line 191

FAQs

FAQs

Does the Indef USEOT Crane have any national or international certifications?

Ans: The Indef USEOT Crane is compliant with FEM and ISO Standards.

What is the maximum capacity of this crane?

Ans: The product can support up to 10 tonnes.

What is the maximum span of this product?

Ans: The maximum span is 25 meters.

Is there a data logging or conditional monitoring facility available with this model?

Ans. Yes, our iQueue technology which is Industry 4.0 standard compliant can facilitate this.

Where can I find a service facility and spare parts for this crane?

Ans: The Indef Service Team is available at all regional offices. You can also call or WhatsApp us 24x7 at +91 8669994119.

Where can I buy the Indef USEOT Crane?

Ans: Indef is present pan-India. You can reach out to us at +91 (0) 2192662511 or enquire@indef.com.

How can I get a list of Indef crane customer references?

Ans: You can reach out to us at enquire@indef.com and we will be happy to provide you with the references.
